TopoDrone Aquamapper

Original price $19,900.00 - Original price $19,900.00
Original price
$19,900.00
$19,900.00 - $19,900.00
Current price $19,900.00
DESCRIPTION

Description

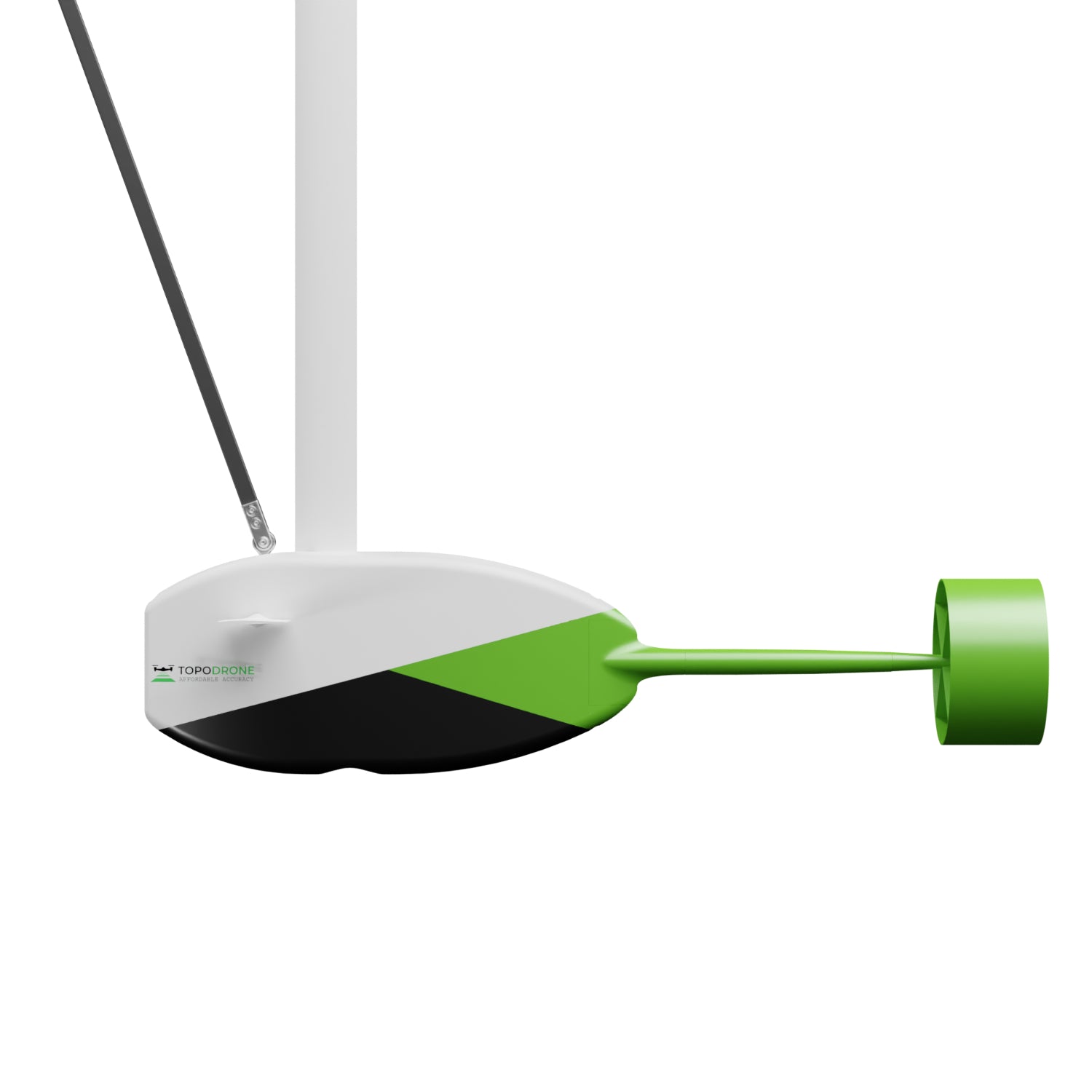

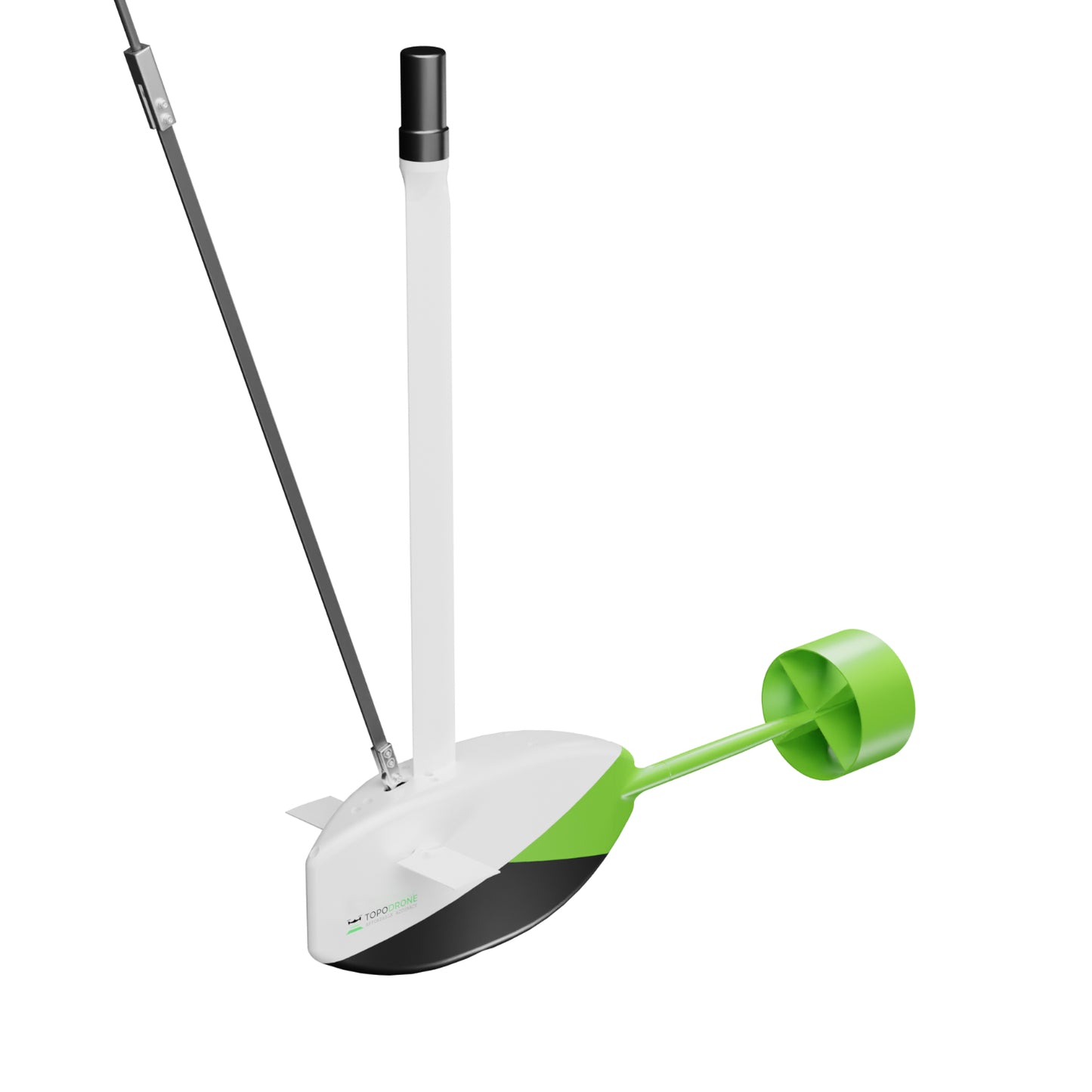

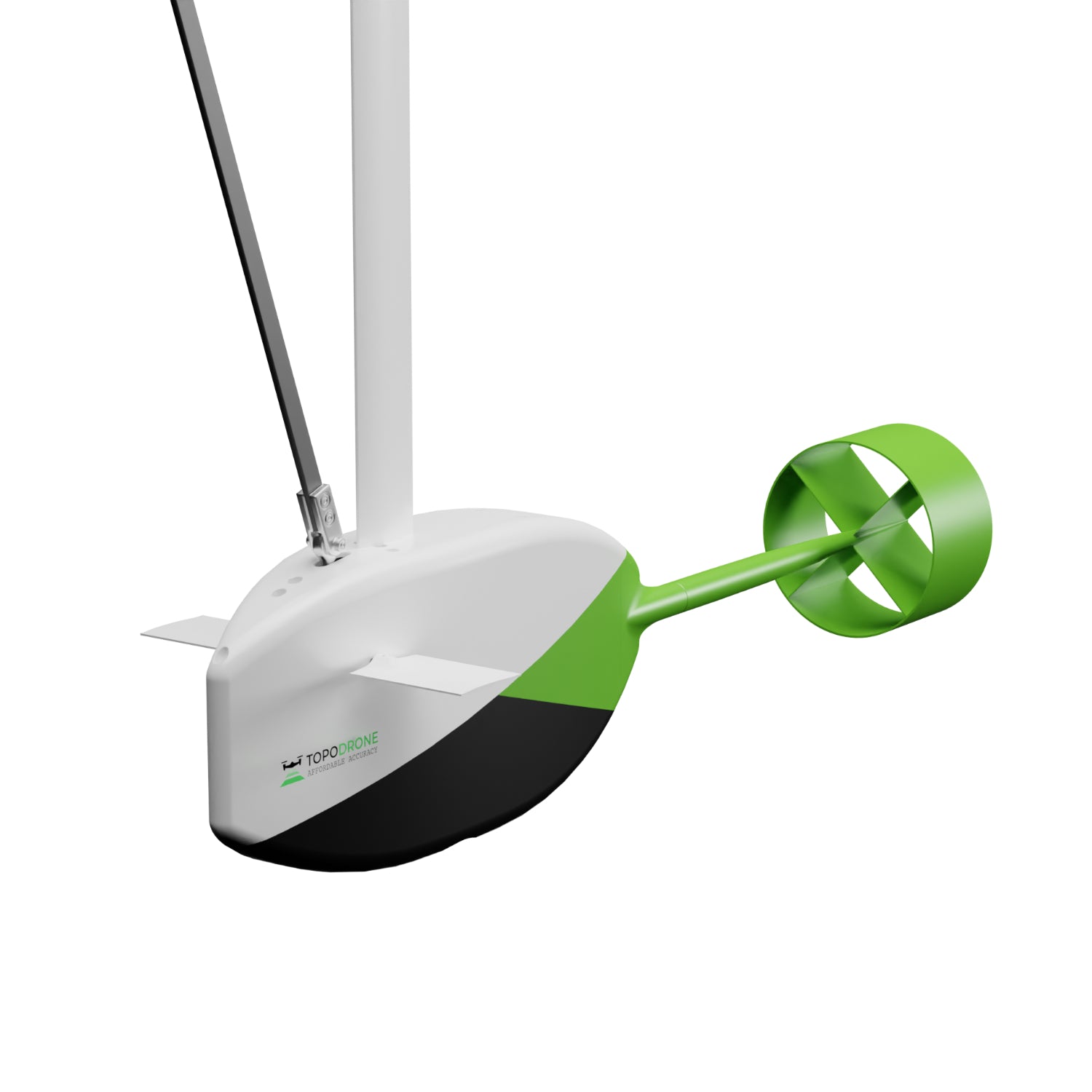

AQUAMAPPER is the new drone-based solution in the bathymetric survey and marine construction, it is a unique multitasking platform specially designed for a wide range of applications in the maritime branch and other water sources. This product provides a great combination of high speed efficiency and accuracy, successfully challenging conventional methods such as boats and providing obvious profit as a cost-effective and easy-for-use solution.

Features

  • High survey speed up to 14 km/h;
  • Centimeter level accuracy;
  • Cheap and effective solution for marine survey;
  • Easy planning and autonomic mission;
  • Quick deploy, ready for use in 10 minutes;
  • Ability to work in hard access and shallow water areas;
  • Ability to use different sensors for any survey mission;
  • Ability to combine data with LiDAR data;
  • PPK ready solution;
  • Compatible with DJI Matrice 300 RTK.

Applications

  • Open sea bathymetric survey up to 100m depth;
  • Periodic maintenance survey of storage pools;
  • Quantity survey and calculation of sediments;
  • Bathymetric survey in shallow water and hard access areas.

In the box

  • 1 * TOPODRONE Aquamapper sensor
  • 1 * GNSS antenna
  • 1 * UgCS SkyHub

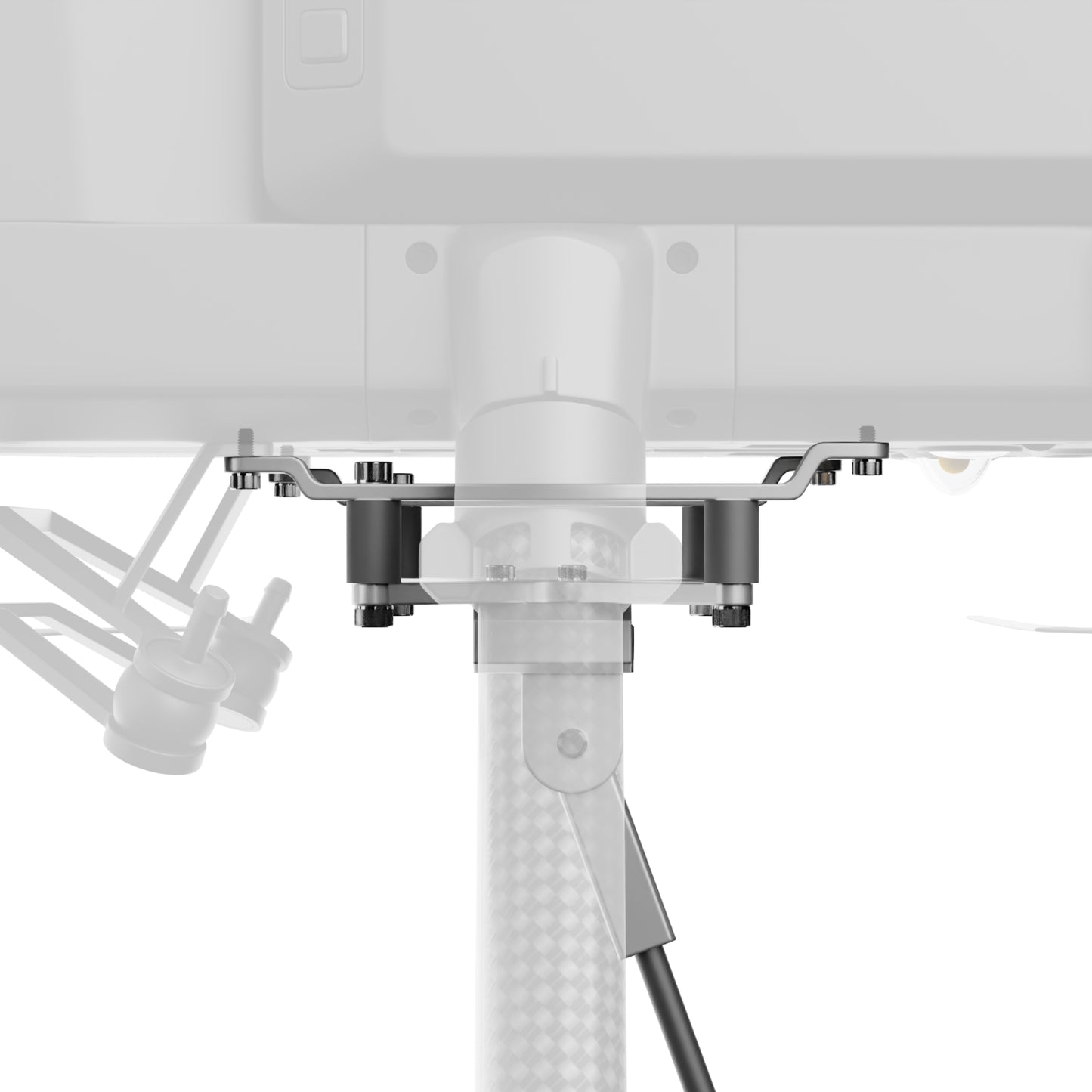

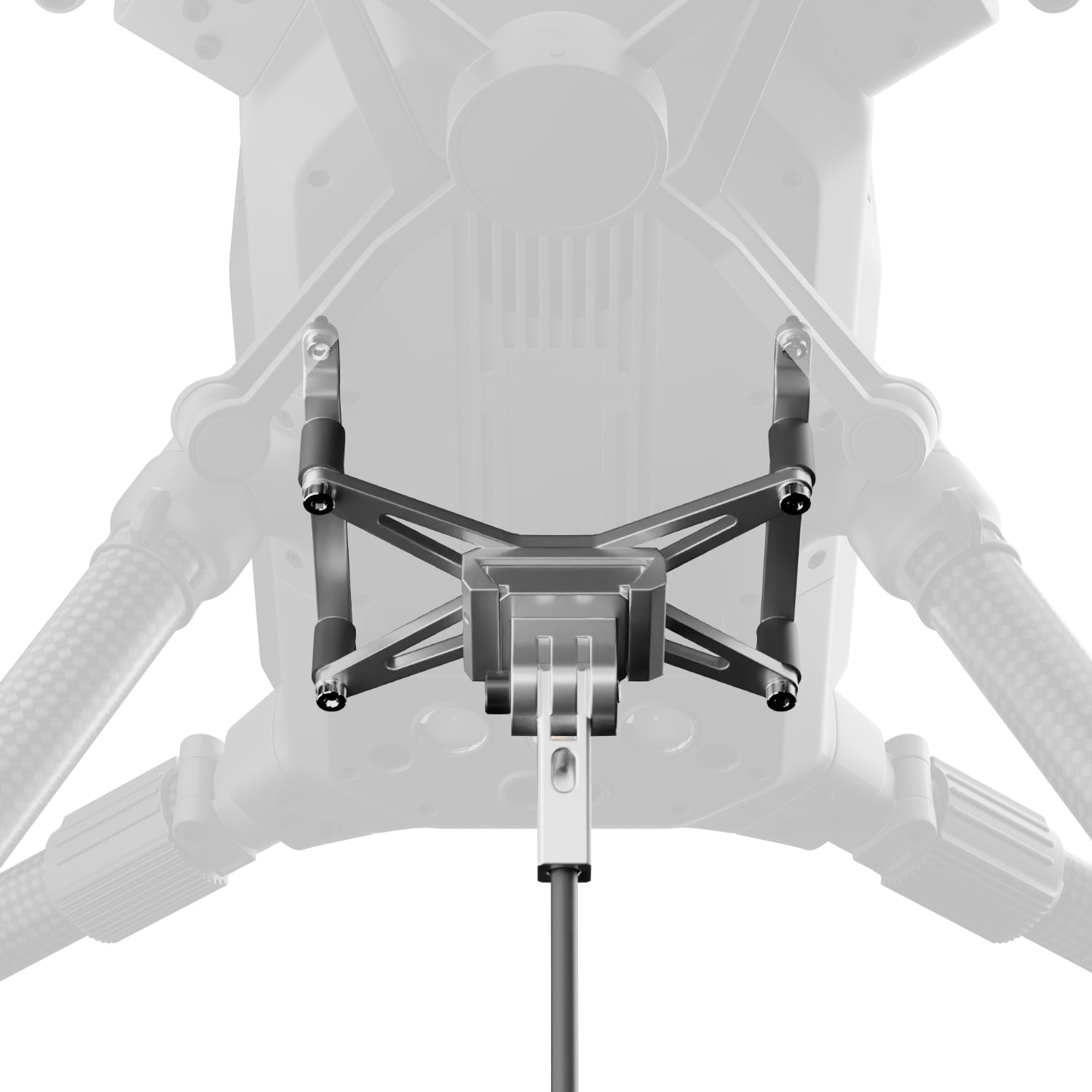

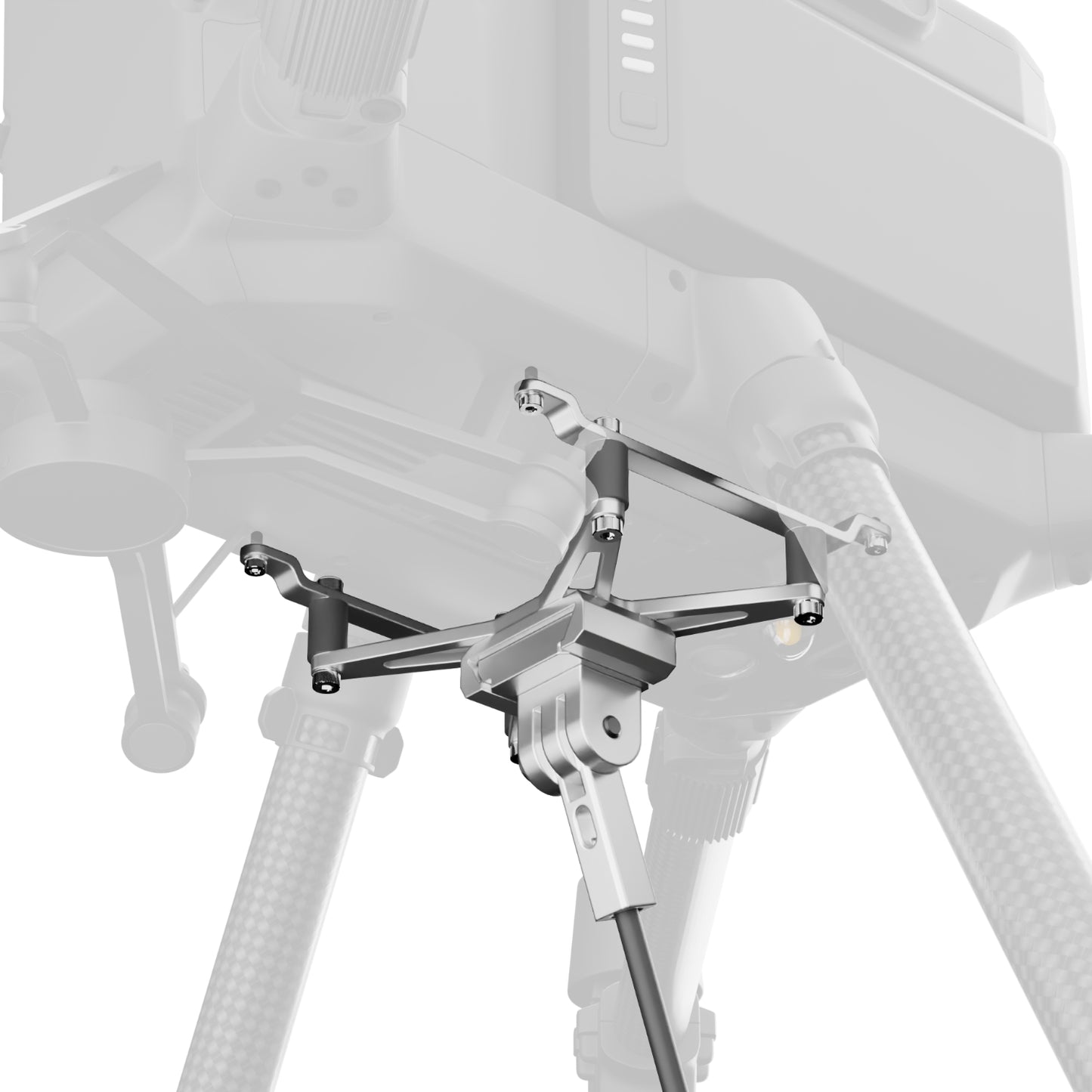

  • 1 * Mounting to the drone
  • 1 * Cable set
  • 1 * Transportation case
SPECIFICATIONS
General specifications
Country of origin
Switzerland
Warranty
12 month
Weight
2.5 kg
Dimensions
16.6 x 51.8 x 23 m
Operating temperature range
-10 ... +50 °C
GNSS
Receiver type
PPK
Number of channels
184
Frequency of GNSS data recording
10 Hz
Accuracy of point coordinates determination
up to 5 cm XYZ
GPS support
L1C/A, L2C
GLONASS support
L1OF, L2OF
BeiDou support
B1I, B2I
Galileo support
E1B/C, E5b
SBAS support
L1C/A
QZSS support
L1C/A, L1S, L2C
Working without reference points
Yes
Bathymetry
Operational crusing speed
up to 12 km/h
Depth measurement range
up to 100 m
Device immersion depth
-0.2 ... -0.4 m
Acoustic frequency
450 kHz
Beam width
5° Conical (-3dB)
Transmit pulse width
10 ... 200 msec (10 msec step)
Repetition rate (ping)
10 Hz
Sampling rate
100 kHz
Temperature accuracy
0.5 °C
Stabilization
2-axis, +- 90°
Data output format
ASCII TXT, NMEA0183 or user defined
